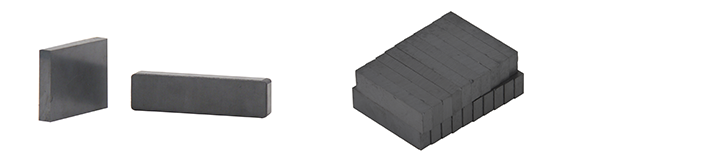

Format:
On request, can be supplied in any other dimension
Supplied without coating.
Maximum working temperature:
250ºC
Standard sizes:
| A (mm) | B (mm) | C (mm) |
| 4 | 4 | 2 |
| 5 | 2.5 | 4 |
| 5 | 5 | 2 |
| 9 | 5 | 2.5 |
| 10 | 5.2 | 3 |
| 20 | 10 | 5 |
| 25 | 20 | 10 |
| 40 | 20 | 5-10 |
| 40 | 25 | 10-15 |
| 48 | 22 | 10 |
| 75 | 17 | 10 |
| 75 | 50 | 15-20 |
| 100 | 20 | 8 |
| 100 | 20 | 25 |
| 100 | 35 | 25 |
| 100 | 100 | 2-3-4-5-6-7-8-10-12 |
| 150 | 100 | 10-12-15-20-25 |
